Spring Cable Reels

...DURABLE thanks to HIGH-END springs

ABU spring-driven cable reels for reliable supply of mobile consumers for in- and outdoor applications!


Reach out for our basic cable reel types with core diameters of 123 mm up to 500 mm. High quality springs guarantee for long life cycles.

Reel and mounting flanges as well as the reel bodies of our basic reel types are galvanized and the slip ring assembly covers consist of robust plastic. Depending on the application, we produce separate dimensions, spiral-winding and powder-coated versions...

Product Catalog
ABU-Logo
Spring-driven

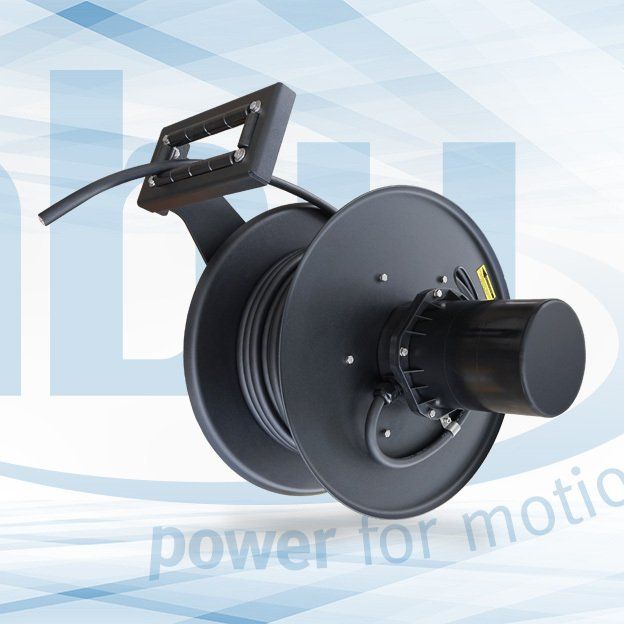

FLT "280"

Example with 280 mm core diameter as powder coated product type.

Spring Reel

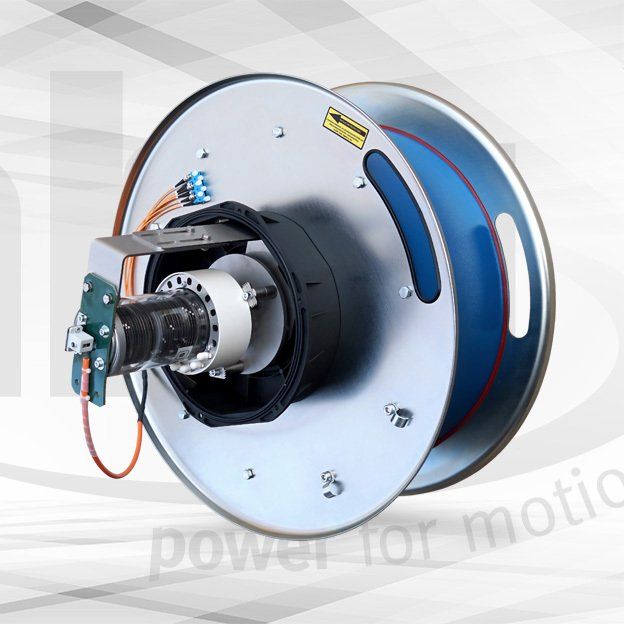

FLT "500"

Example with 500 mm core diameter as galvanized type incl. fiber optic rotary joint.

Cable Reel

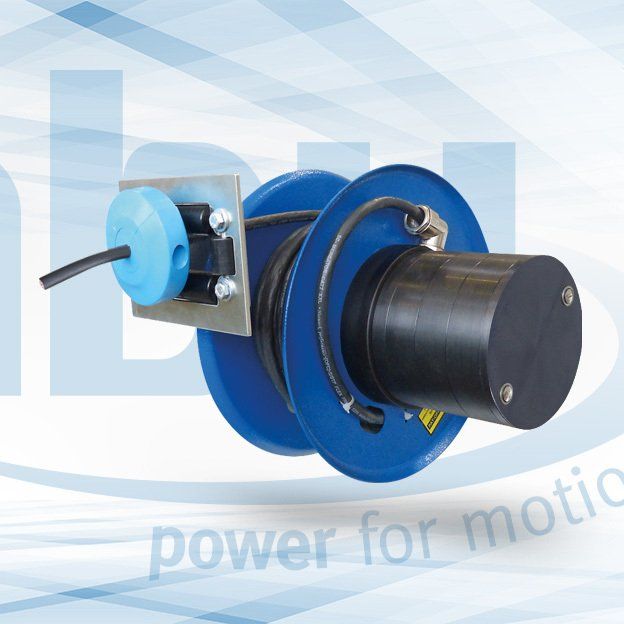

FLT "123"

Example with 123 mm core diameter as powder coated product type.

Spring-driven Cable Reels - Product Highlights

  • Extremely robust reel bodies made of galvanized steel as well as winding bodies with additional polyester powder coating guarantee optimal corrosion protection for demanding indoor and outdoor applications.
  • Equipped with life-time lubricated roller bearings on both sides.
  • We are happy to supply stainless steel versions (V2A / V4A).
  • Protection classes IP65 / IP66 for excellent sealing against water and dust enable our spring cable reels to be used even under the most difficult environmental conditions.
  • High-performance springs, made of special spring steel & integrated in a separate protective covers, ensure a maximum service life with continuous use.
  • Modular slip ring assemblies of the highest quality for permanent industrial applications with currents from 0.1 mA to 200 A.
  • Impact-resistant slip ring body hoods made of fiberglass-reinforced & weather-resistant plastic including ventilation screw to prevent condensation.
  • Equipment options incl. halogen-free special cables specially developed for reel operation with maximum work loads.
